Kuat Pivot XD

Description

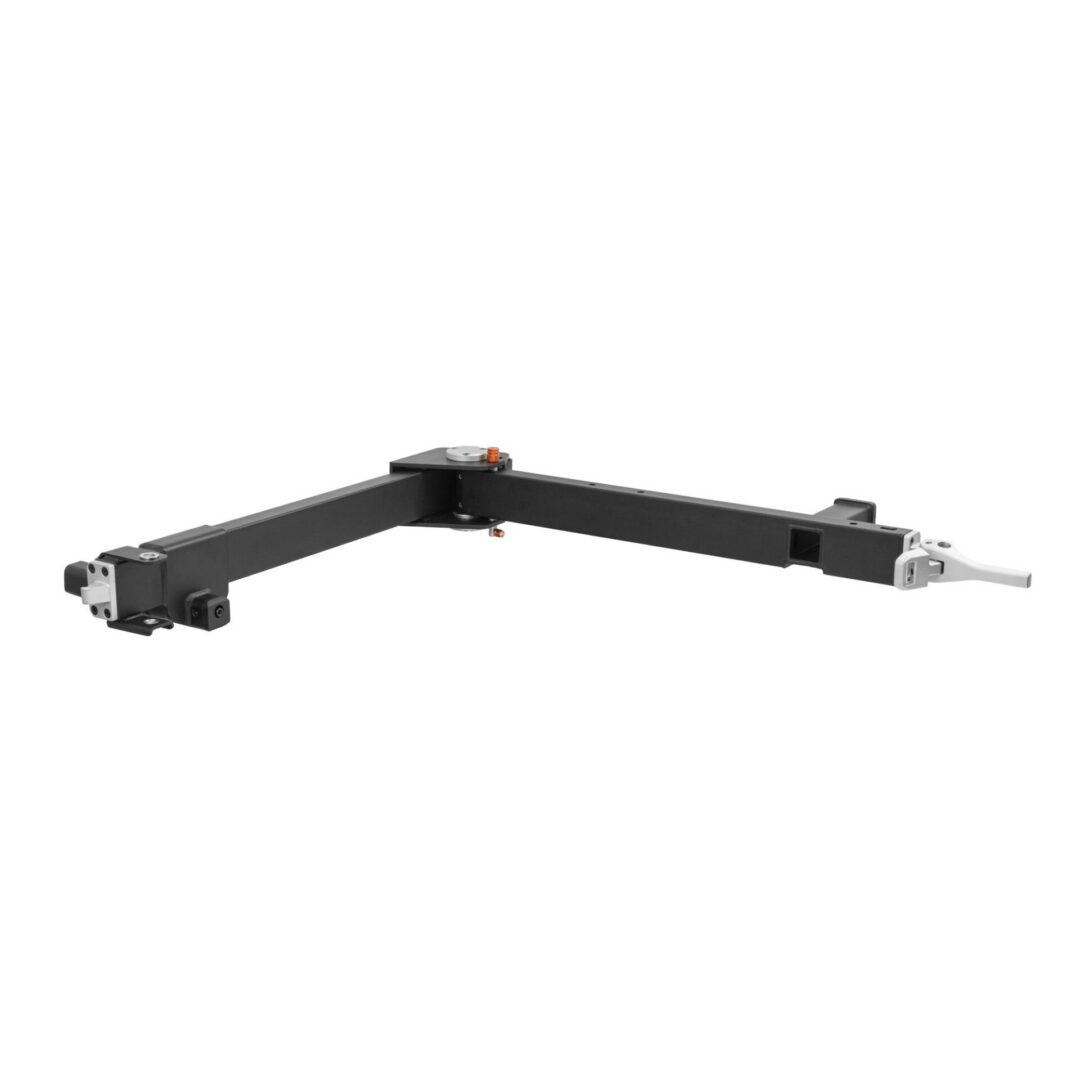

The Pivot XD is Kuat’s heavy-duty swing-away hitch, engineered for serious hauling with a substantial 350 lb load capacity. Available in both passenger- and driver-side swing configurations, the Pivot XD delivers the strength, stability, and versatility needed for carrying bikes, cargo, and more. Pair the Pivot XD with accessories like the MOLLE Hoop andSpare Tire Mount to expand your setup with additional carrying options.

Every component is engineered for performance and durability. The forged latch design provides exceptional rigidity under load, while the custom-machined safety pin adds stability when you’re on the road. The included locking hitch pin and Flatlock™ Hitch Cam system work together to keep your setup secure and stable, while the conical ball bearing pivot provides smooth opening and closing.

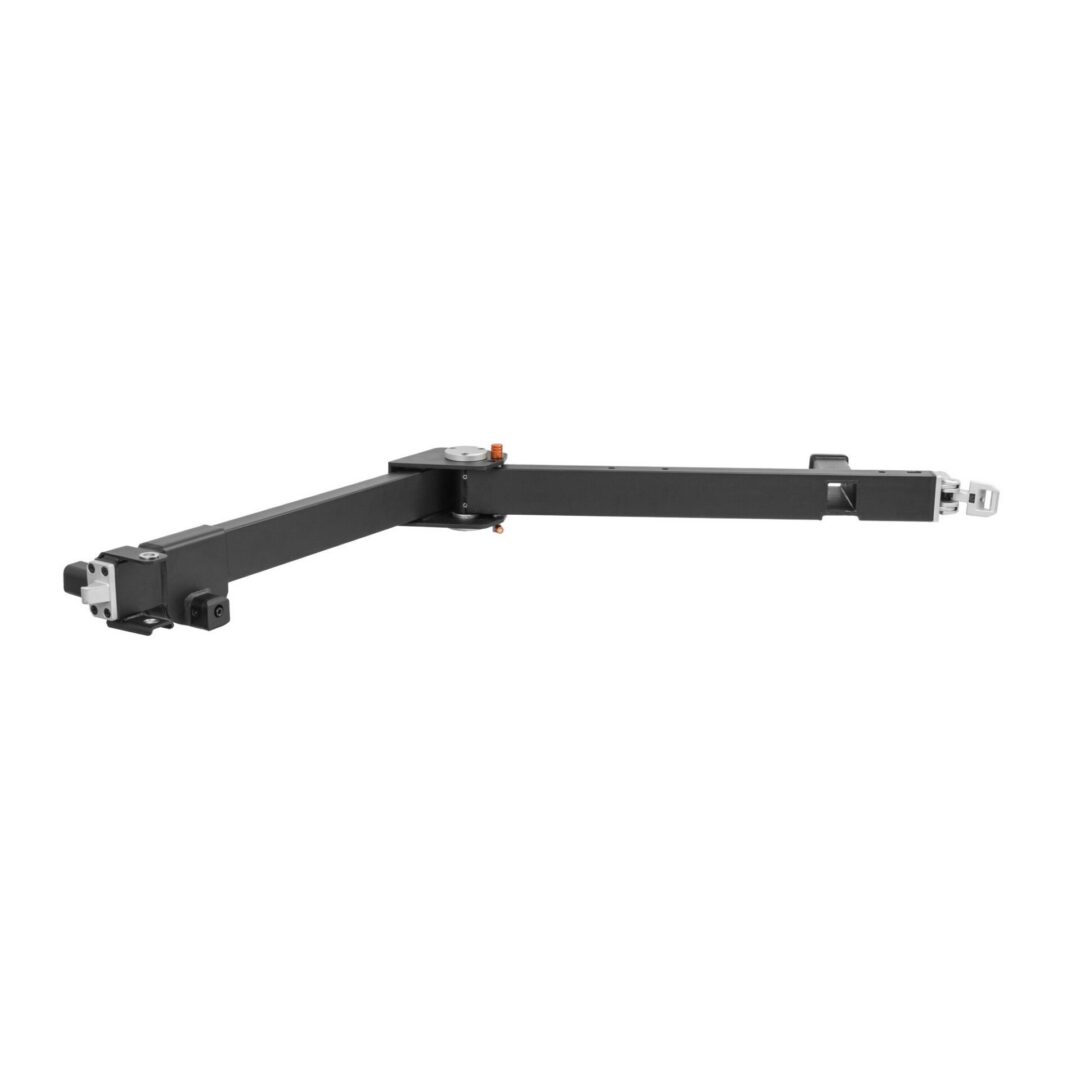

With both 90- and 120-degree swing-away positions, the Pivot XD makes it easy to move your bike or cargo carrier out of the way for rear vehicle access. Whether you’re loading gear, opening a tailgate, or accessing the back of your vehicle at the trailhead, campsite, or wherever the road takes you, the smooth swing mechanism keeps access simple.

Built with robust steel construction throughout, the Pivot XD is ready to handle demanding loads and big adventures. From bike racks to cargo carriers, it delivers the strength and reliability you need to haul more with confidence. Plus, it’s backed by Kuat’s No Worries Limited Warranty.

Highlights

• 350 lb max weight capacity
• Vertical bike rack approved; up to 4 bikes with a reduced 150 lbs. weight capacity (not including the weight of the bike rack)

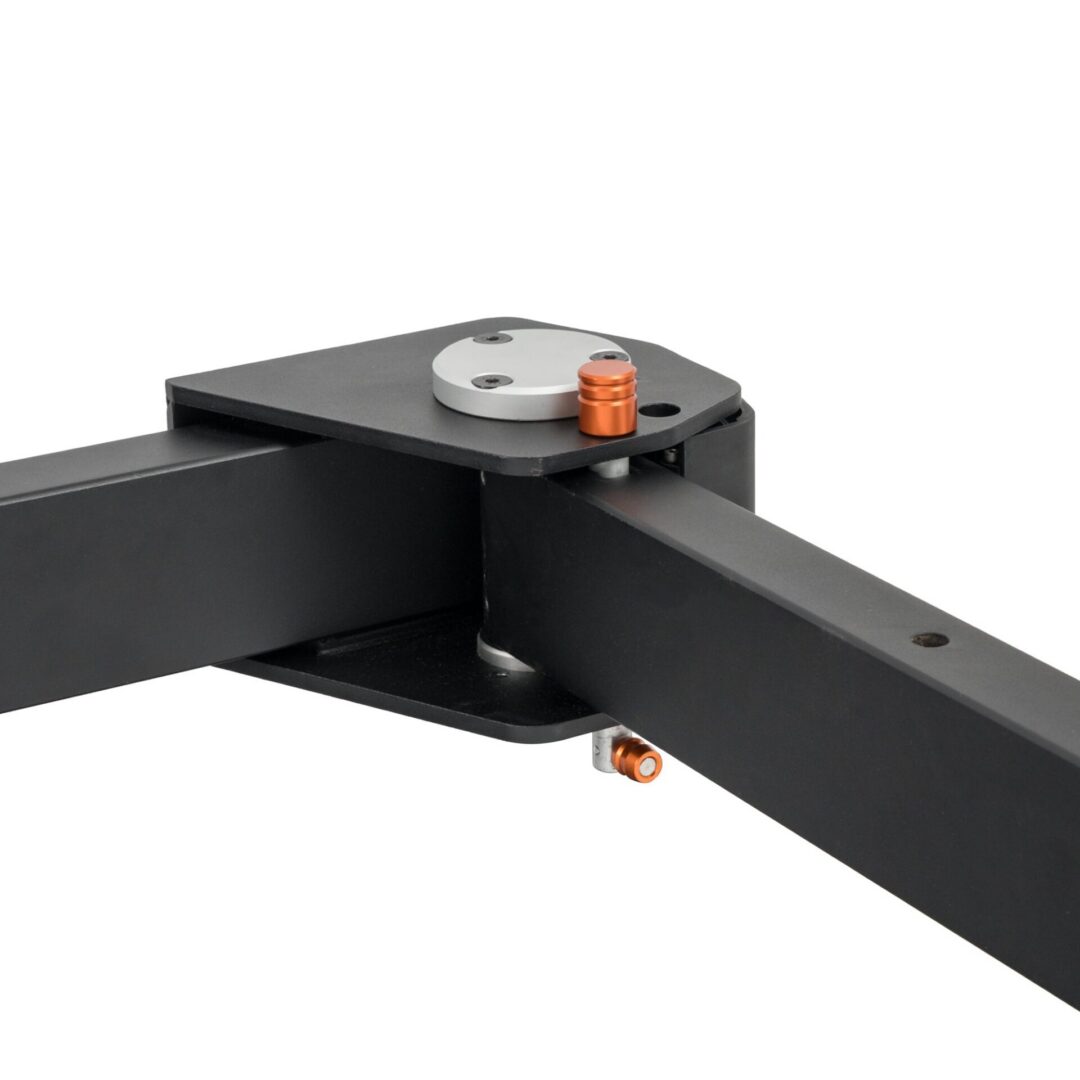

• A conical ball bearing pivot creates a smooth, open-ended experience
• 90 and 120-degree swing-away capabilities
• Forged latch design for exceptional rigidity
• Included Locking Hitch Pin
• Patented Flatlock™ Hitch Cam
• Steel Construction
• Sandy Black Powder Coat
• Built to accept Kuat’s Accessory Molle Hoop and Spare Tire Adapter
• No Worries Limited Warranty
• Minimum Class III hitch required
• Optional low-profile cotter pin expands compatibility
• Available in both driver- and passenger-side swing

Features

• 350 LB. weight capacity: Built to handle serious loads, the Pivot XD supports up to 350 pounds – a substantial 40% increase over the V2’s 250 lb capacity. This heavy-duty rating means you can confidently carry multiple bikes, larger cargo boxes, or heavier equipment without worry. But distance matters with the Pivot XD. The farther the weight is from the hitch, the more torque is applied, which limits how much weight or how many bikes can be safely carried. Kuat racks are limited to 3 bikes (maximum 250 lbs), and all other bike racks or cargo systems should follow the distance-to-weight guidelines: Up to 28″ (from the accessory’s hitch-pin hole to the furthest point): 350 lbs max total weight 28–40″ (from the accessory’s hitch-pin hole to the furthest point): 250 lbs max total weight Refer to the Pivot XD’s Loading Capacity Guide (below) to learn more. Loads within the 40″ limit may exceed some Class III receiver ratings — check your vehicle or hitch manufacturer for exact tongue-weight details. Vertical bike rack approved; up to 4 bikes with a reduced 150 lbs. weight capacity (not including the weight of the bike rack)

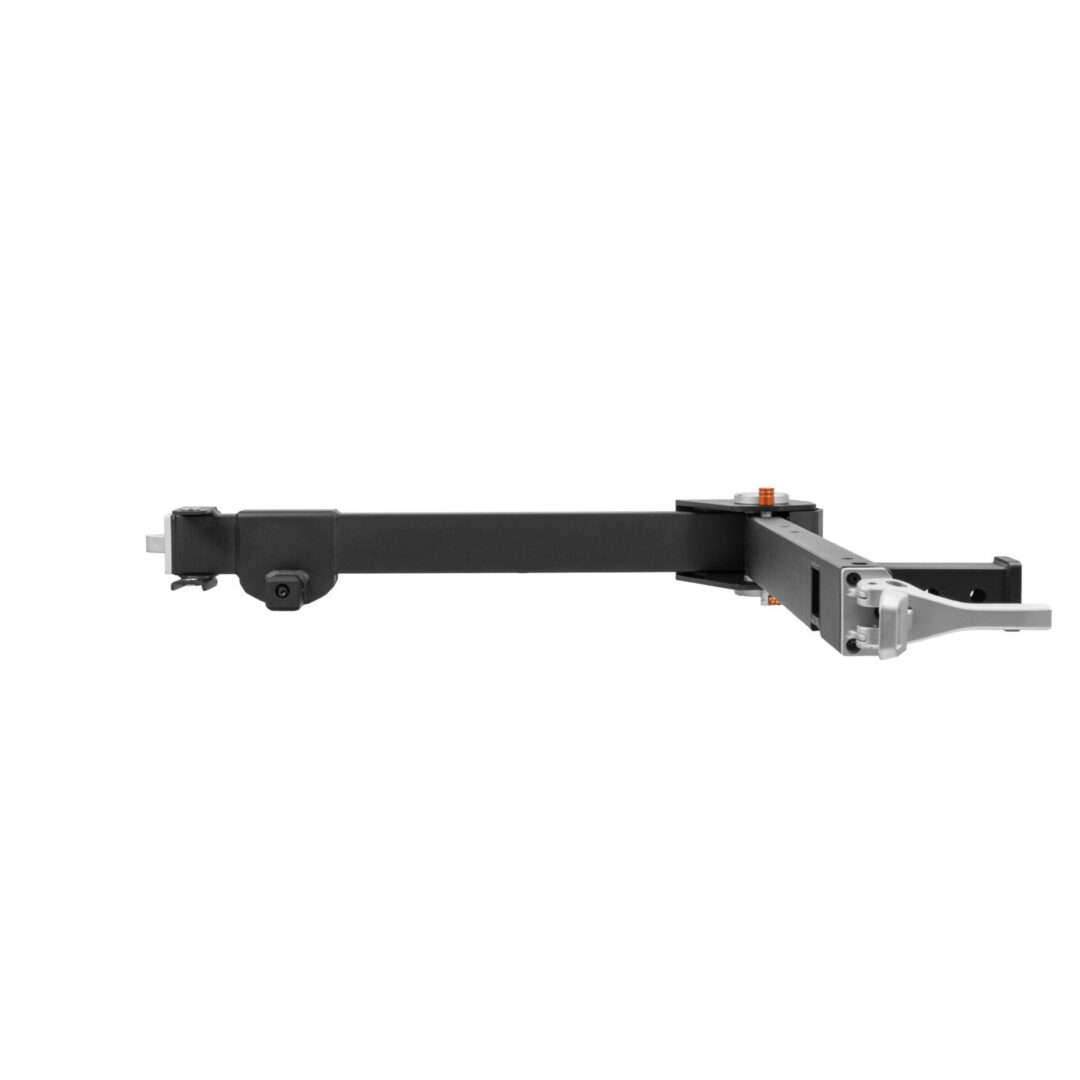

• 90° to 120° Swing AWay Hitch: Maximum versatility with dual swing positions. Choose 90 degrees for standard clearance or 120 degrees for maximum rear access. The smooth swing mechanism allows you to quickly move your cargo out of the way for tailgate access or rear door opening.

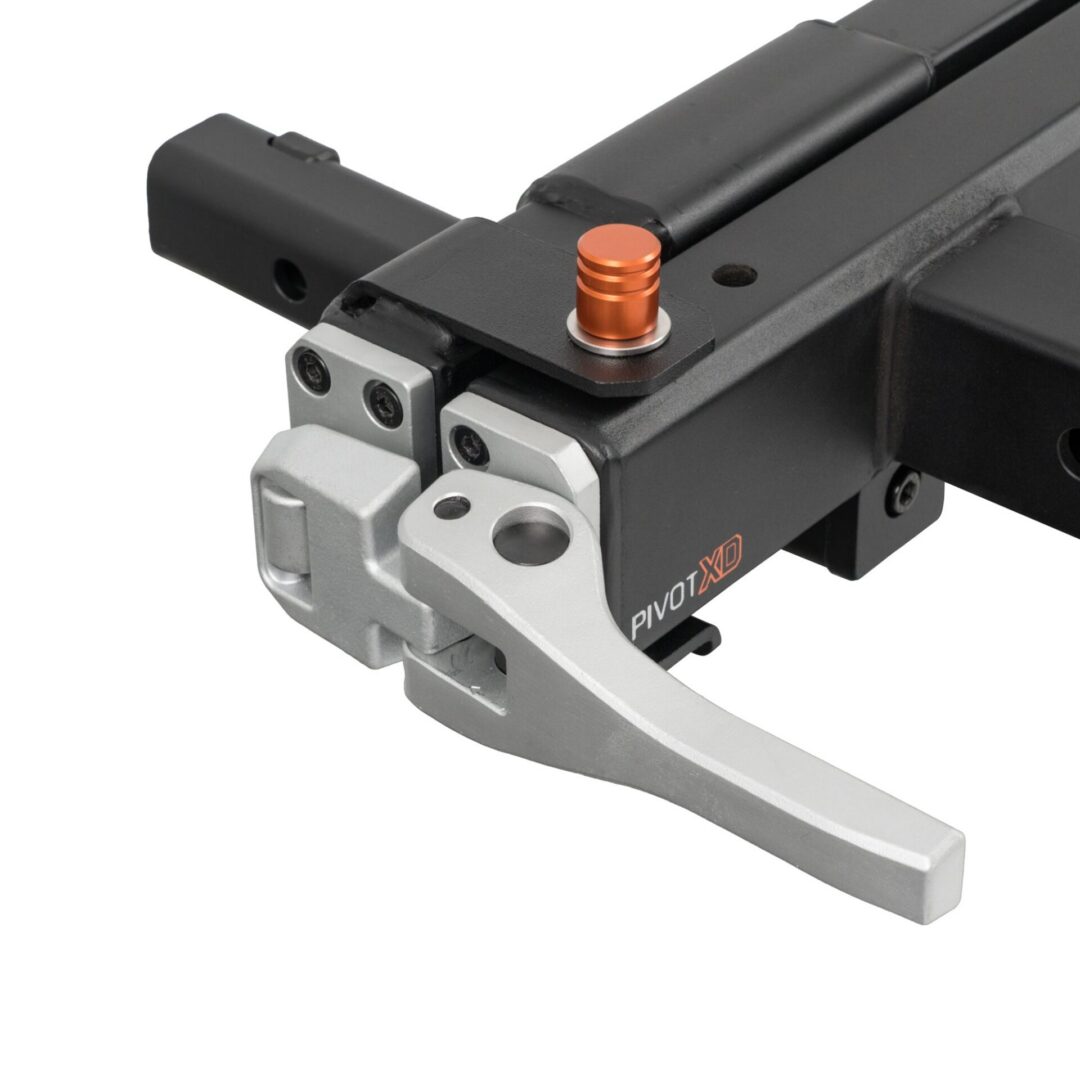

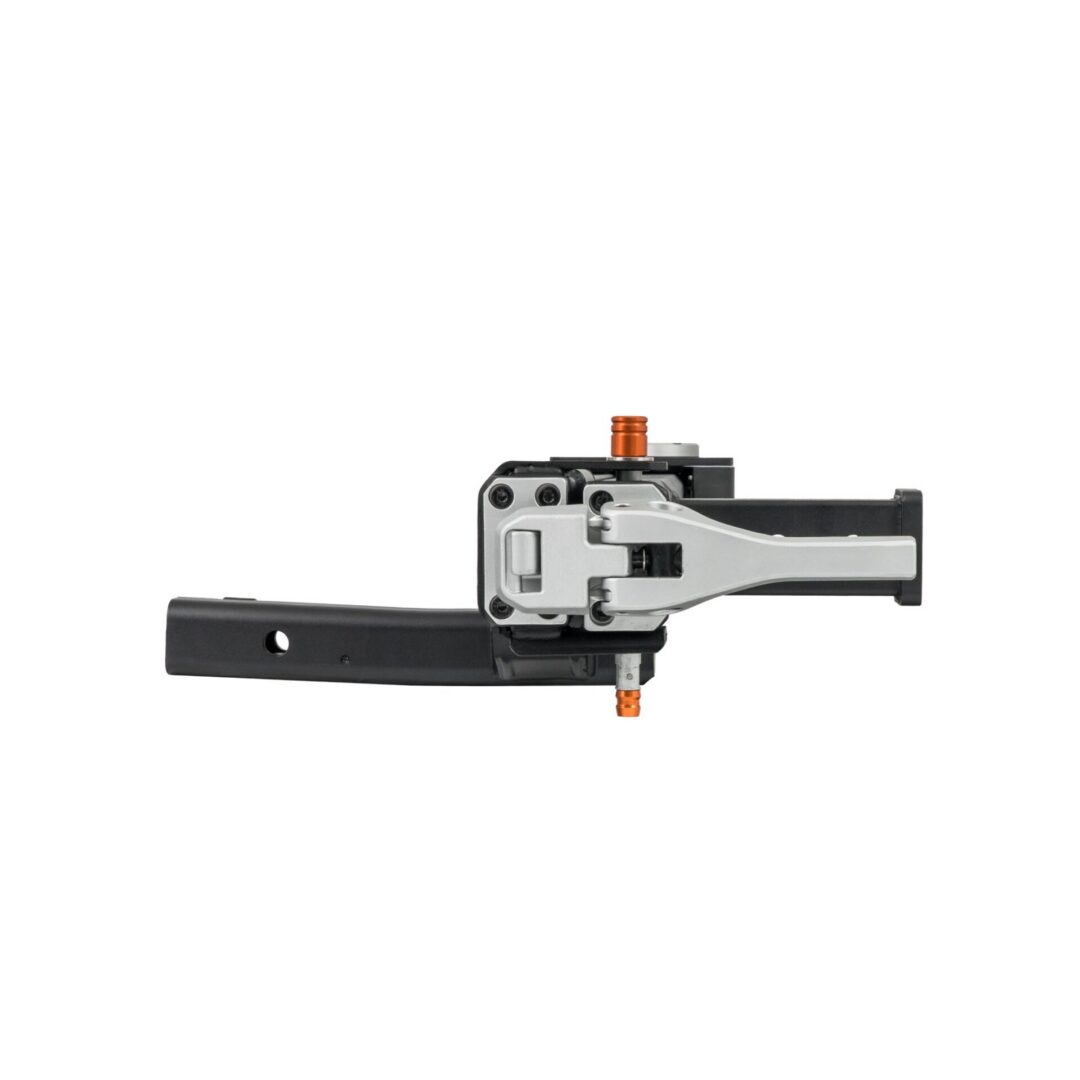

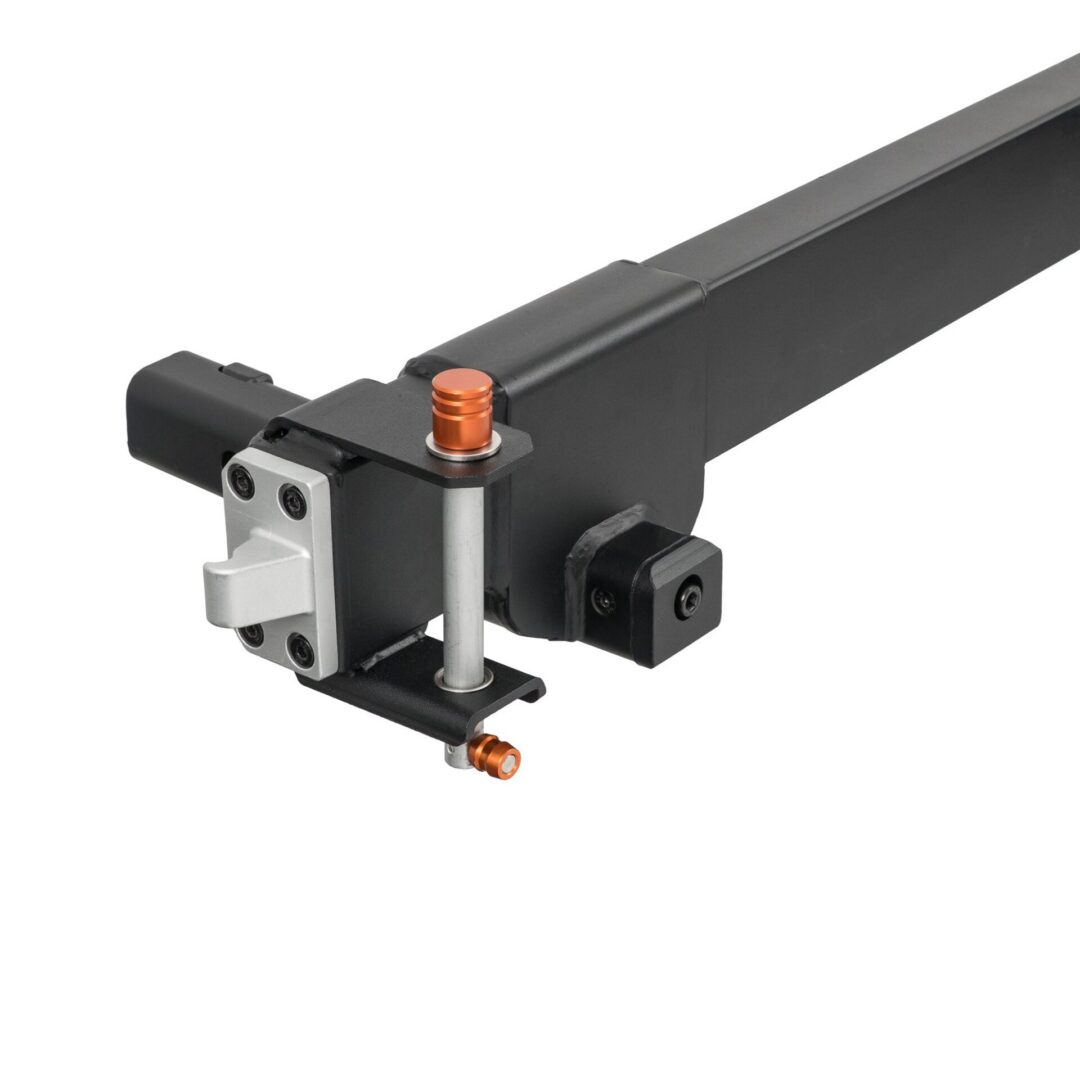

• Forged Latch: Engineered for strength, the forged latch provides superior rigidity compared to cast or fabricated alternatives. This precision-forged component ensures your swing away hitch maintains a secure closed position even under maximum load conditions and road vibration.
• Patented Flatlock™ Hitch Cam: Advanced cam-locking mechanism provides a tight, rattle-free connection to your vehicle’s receiver. The cam system applies consistent pressure to eliminate play and ensure smooth operation mile after mile.
• locking hitch pin: Includes a locking hitch pin that adds a layer of security to the hitch assembly. The durable lock mechanism helps deter a potential threat while still allowing for smooth, easy operation when in use.
• Bike Rack Compatible: Transforms your existing 2″ hitch bike rack into a versatile swing away bike rack. Designed for maximum compatibility, the Pivot XD works with most platform and tray-style bike racks, giving you the freedom to access your vehicle’s rear door or tailgate without removing your bikes.
• Swing Your Way: Choose between passenger- or driver-side swing to fit your vehicle and setup. Both options offer 90- and 120-degree swing positions for easy rear vehicle access.

Specifications

Kuat lists it as compatible with: ION, NV, NV 2.0, NV 2.0 Add-On, NV Base 2.0, NV Base 2.0 Add-On, Piston ION, Piston Pro, Piston Pro Add-On, Piston Pro X, Piston Pro X Add-On, Piston SR Hitch Rack, Rack Accessory, Sherpa, Sherpa 2.0, Transfer, Transfer v2.
