Description

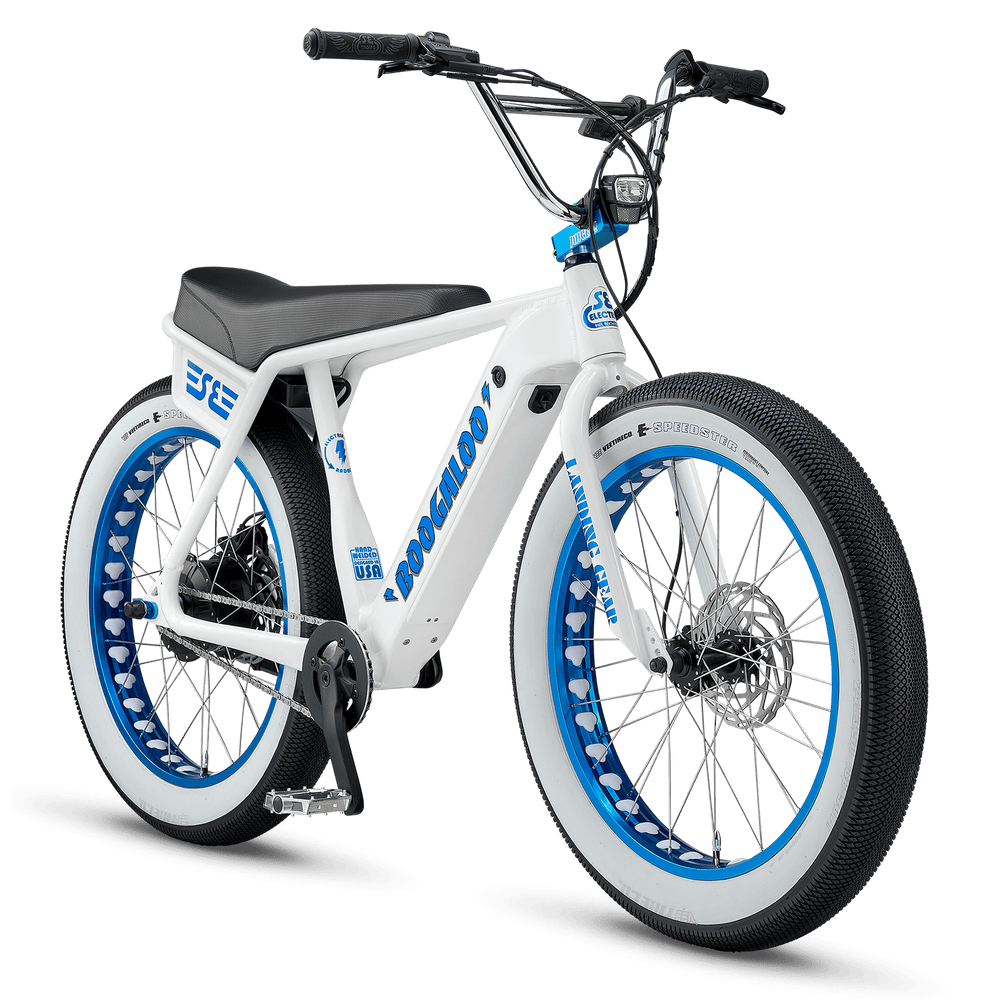

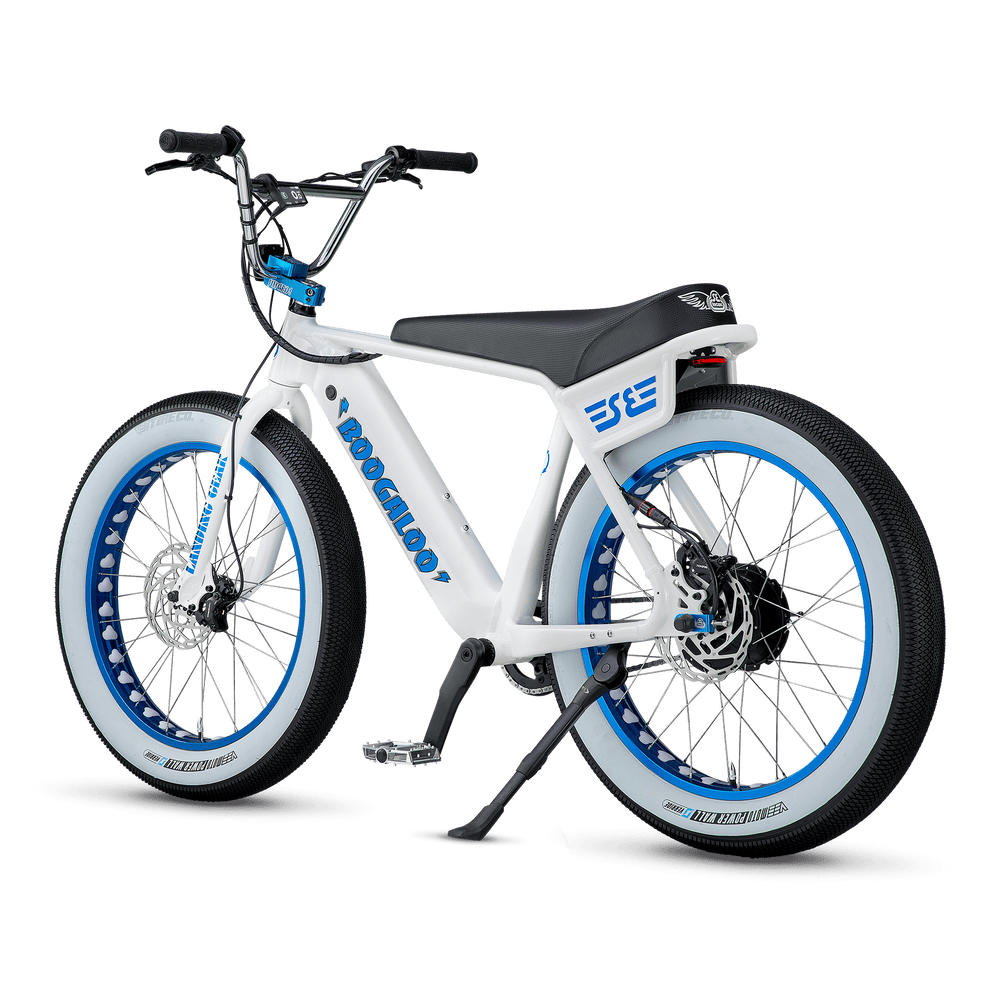

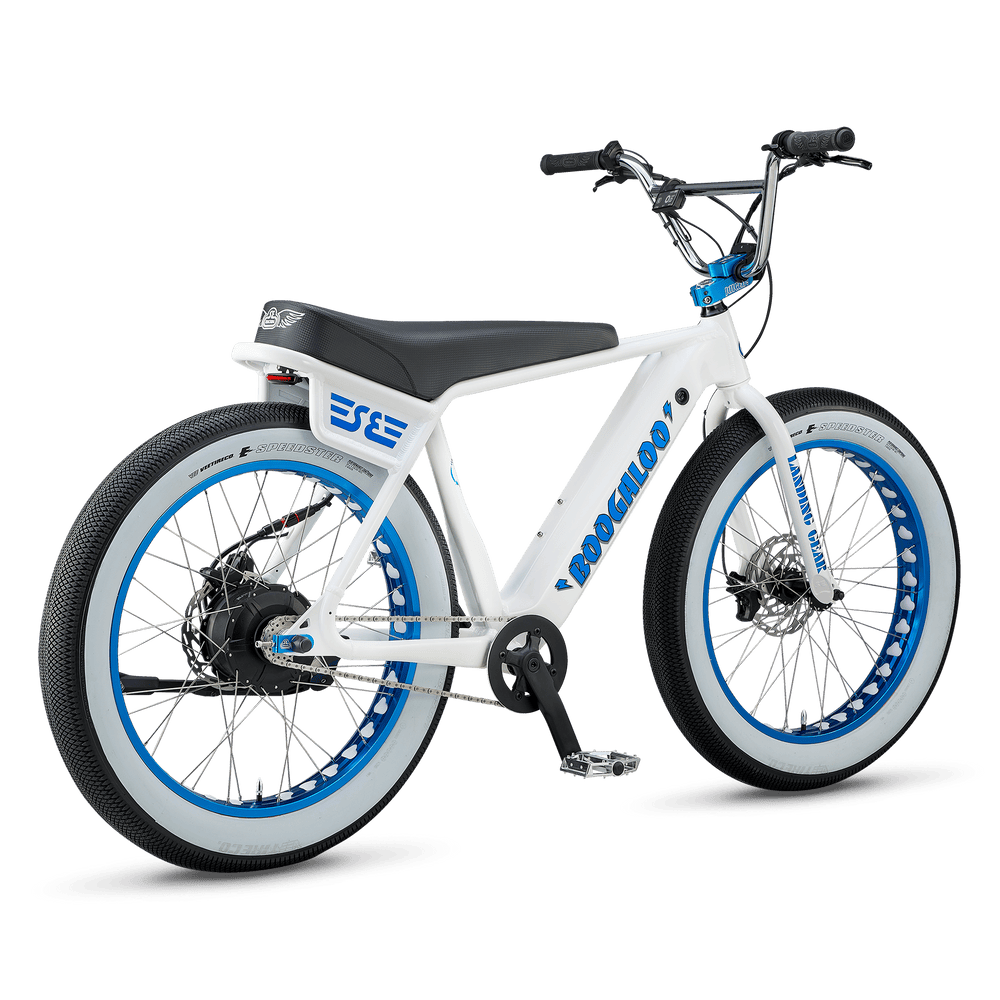

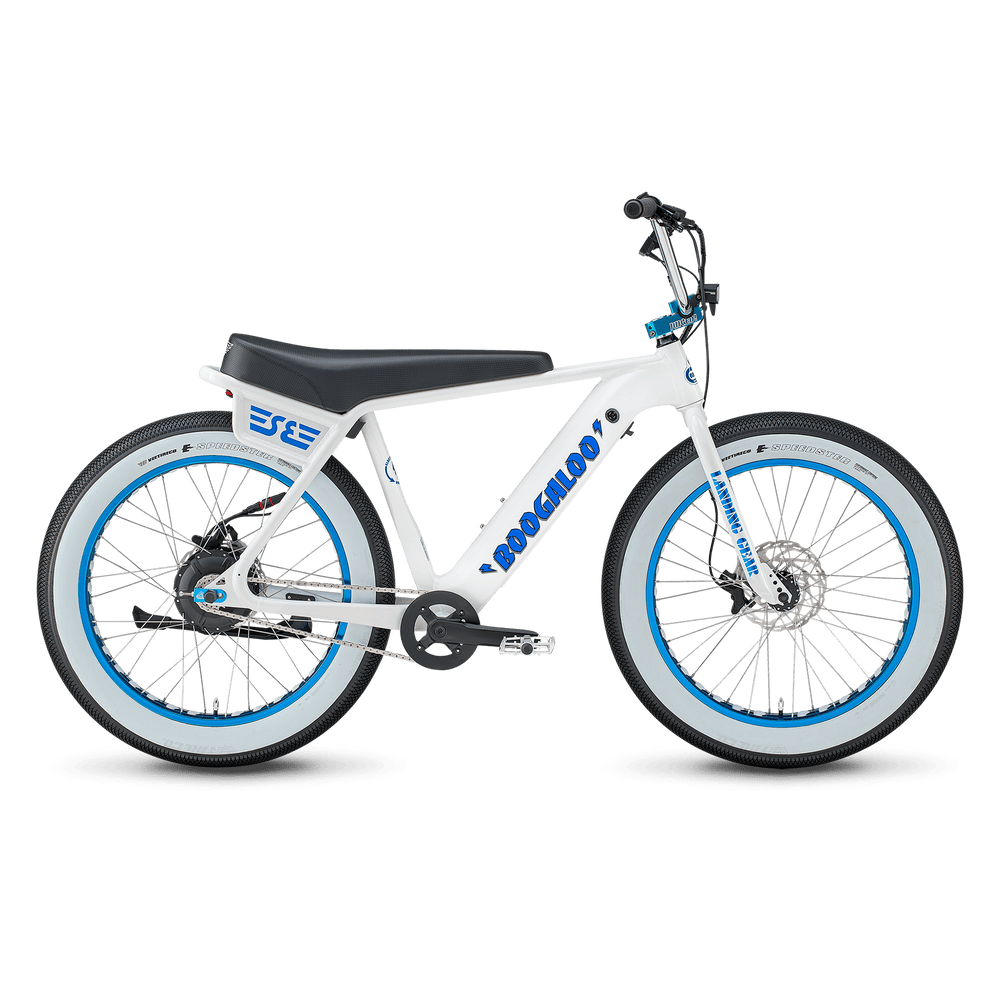

The SE Bik es Electric Boogaloo is here to bring a new kind of energy to the streets. ⚡️ Built a round a Bafang 48V 750 W rear hub motor, this Class 2 e-bike delivers instant acceleration and a smooth, effortless ride via pedal assist or use of the thumb throttle. With a removable, internal 15AH 720WH battery, clean integration, and that unmistakable SE style, the 24” Electric Boogaloo keeps things simple, fast, and seriously fun. This is the kind of e-bike that’s built to raise it up ! NOTE: A new update has been released for the Bafang Go app! If you have an Electric Boogaloo, follow the simple instruction in this video to be sure your app is up to date. Hit the links below for more information on the electrical components that come with the Electric Boogaloo.
Bafang H550 Motor The rear hub motor delivers up to 750W of rated power and 80Nm of torque for strong acceleration and hill-climbing support. Its durable, water-resistant design supports both throttle and pedal assist, providing smooth, reliable power for cruising and commuting without the complexity of a mid-drive system. Bafang Battery The 720Wh high-capacity battery delivers long-range performance and extended ride time. Fully integrated into the frame for a clean look and added protection, it’s also completely removable and lockable for convenience and security. Bafang Display The full-color TFT display keeps essential ride information front and center, including speed, battery level, assist settings, and ride data. Its clean, intuitive interface and CAN-based communication make monitoring and controlling your ride simple and seamless. Bafang Controller The controller delivers efficient, responsive system control. It provides smooth, reliable power delivery and seamless coordination between the motor, battery, display, and sensors. Bafang system FAQ's and troubleshooting Lezyne Front Light Trelock Rear Light Click here for the Electric Boogaloo assembly guide video. However, we highly recommend having a professional mechanic assemble the bike, especially when electronic components are involved.
Key Features
- Custom SE Electric Boogaloo frame with hidden, removable battery, integrated charging port, and internal cable routing
- Class 2 pedal assist with thumb throttle and pedal assist
- Full electrical system is UL2849 Compliant
- Bafang 750-watt, 48-volt rear hub drive
- 950-watts of peak power, 20mph top speed
- Bafang battery, 48V 15-amp hour, 720-watt hour, 45-mile range
- LCD display with 6 modes
- Four piston Tektro hydraulic brakes, front and rear, with 180mm rotors
- 24” x 3.5” E-Speedster tires
- SE elongated seat with unique shape for wheelies and comfort
- Chain tensioners, water bottle mounts, and alloy kickstand included
Specifications
| Frame | 6061 Aluminum, Double Top Tube, Removeable Internal Battery, SE Seat Brace w/ Built-In Grab Handle, Controller Hidden Beneath Seat, Internally-machined Tapered Integrated Head Tube, Tapered Seat Tube, Looptail Rear End w/ 175mm Spaced Dropouts, Disc Brake Tabs, Water Bottle Mounts |
|---|---|
| Fork | Landing Gear, Full Cr-Mo, Disc Tabs, Tapered Steerer Tube, 402mm Axle to Crown, 50mm Offset, 135mm Spaced Dropouts |
| Crankset | Samox Aluminum, 165mm, 34T Steel Chainring with Chainguard |
| Pedals | FPD Low-profile Platform |
| Chain | KMC Z1eHX |
| Wheelset | Alloy 36H Nutted Sealed Front Hub, Bafang H550 Rear Hub, 135mm Front Hub & 175mm Rear Hub, w/ 66mm SE Bubble Fat Rims, 16T Freewheel, Stainless Spokes |
| Tires | Vee Tire Co x SE Racing Speedster, Performance Compound, Override Core, E-25, 24" x 3.5" Front & Rear |

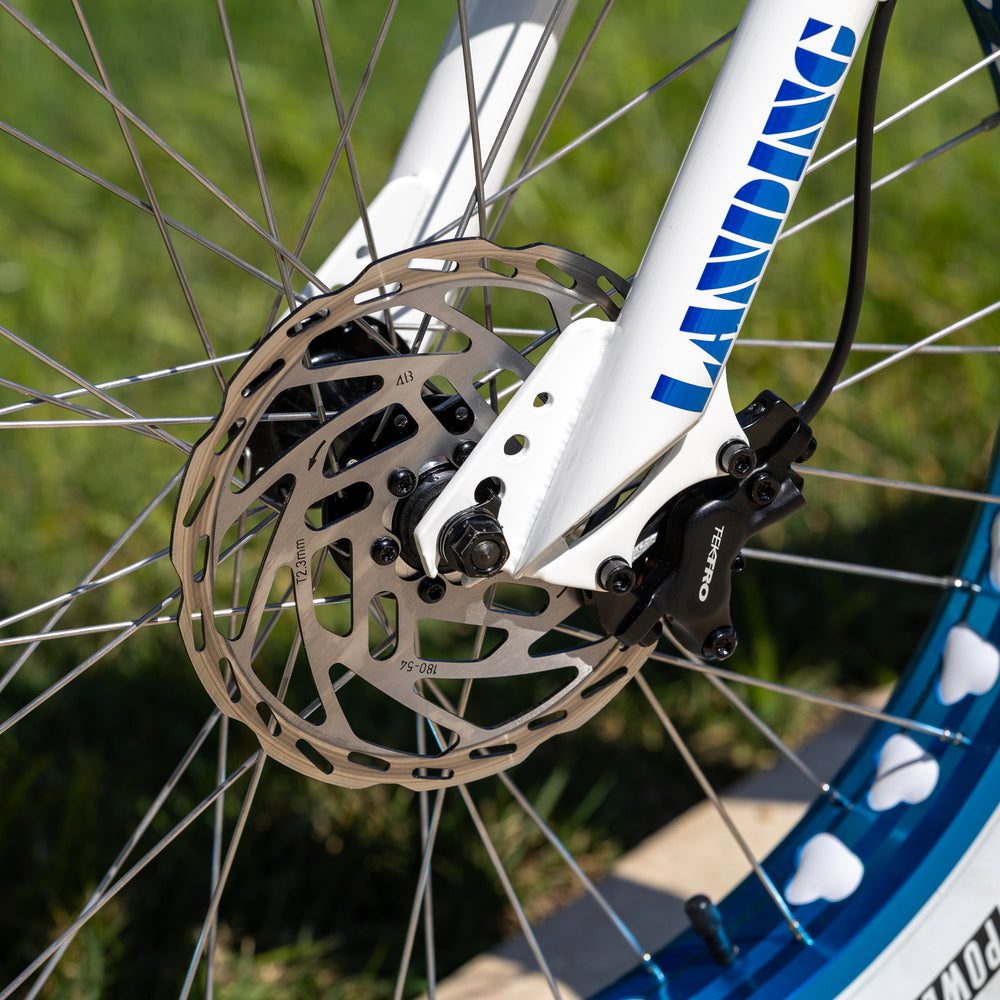

| Brakeset | Tektro HD-E3940, Hydraulic Disc, 4-Piston, Formulated Mineral Oil, Resin Pads, 180mm Rotors |
| Brake Levers | Tektro HD-E3940, 3-Finger Lever, New Reservoir Cap |
| Headset | Neco, Sealed 1-1/8"-1.5" Tapered, Integrated Headset |

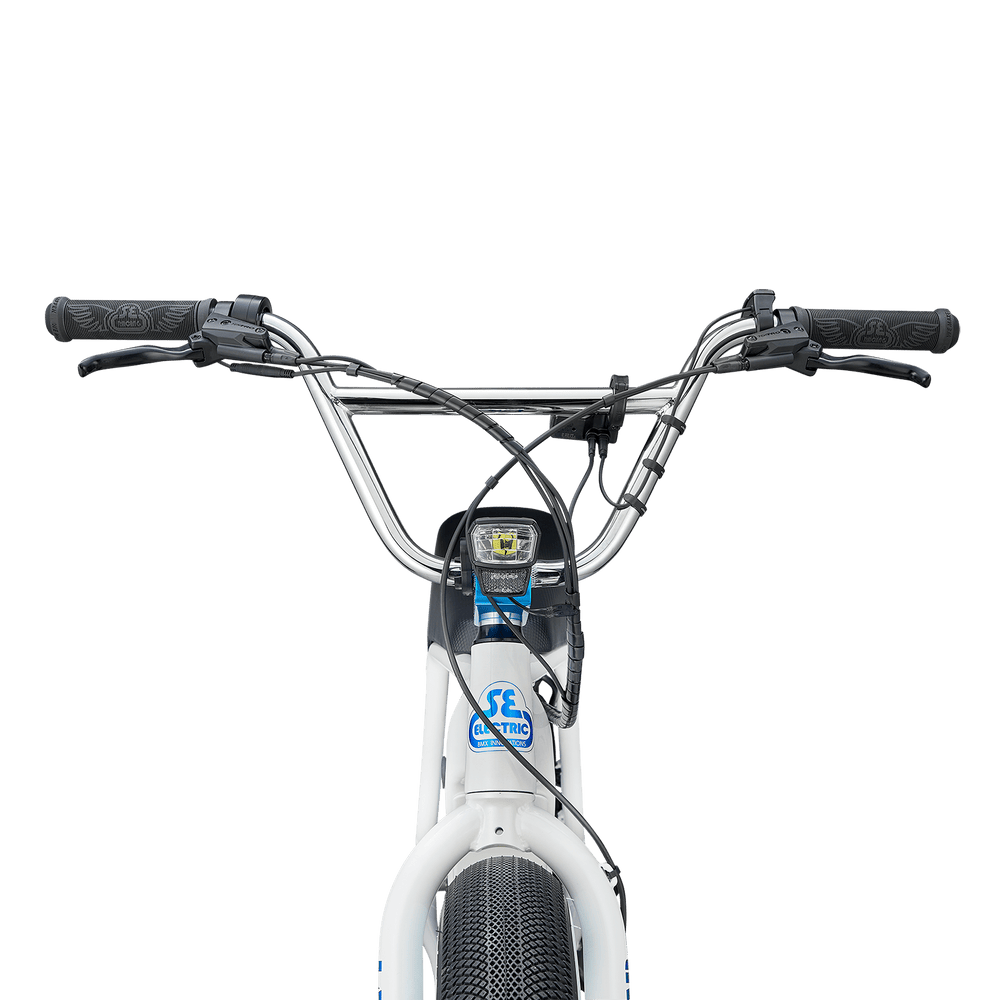

| Handlebar | Power Wing Bar, 28.5" x 8.25", 12° Backsweep, 2° Upsweep |
| Stem | SE Retro Alloy Top-Load, 55mm Reach |
| Grips | SE Racing Mushroom Wing Grips w/ SE Rubber End Plugs |
| Seat | Elongated SE Seat w/ Grippy Cover |
| Accessories | Alloy Kickstand, Alloy Valve Caps, Water Bottle Mounts |
| Motor | Bafang H550, 750W Rear Hub Motor, 950W Peak Power, 48V, 85Nm Torque, 20mph |
| Battery | Bafang Lockable Removeable Internal, 48V, 15Ah, 720Wh, UL2271 Compliant |

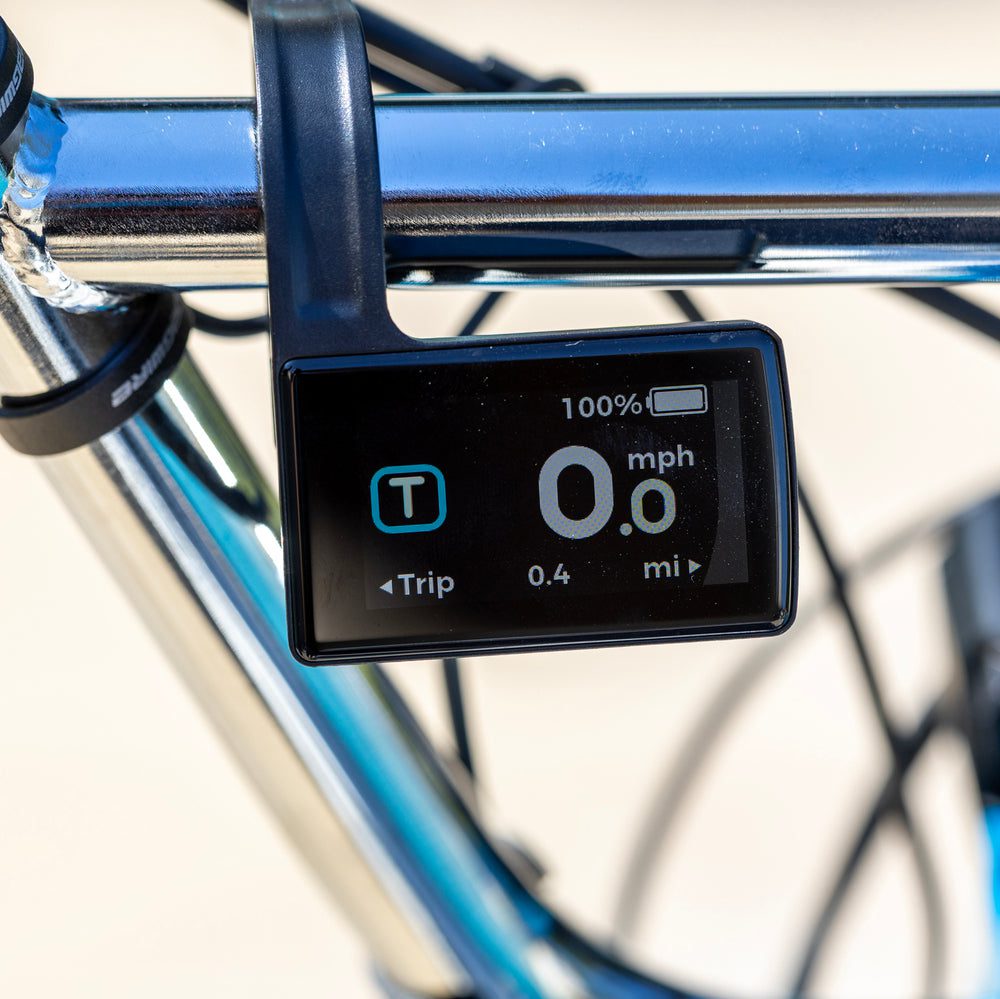

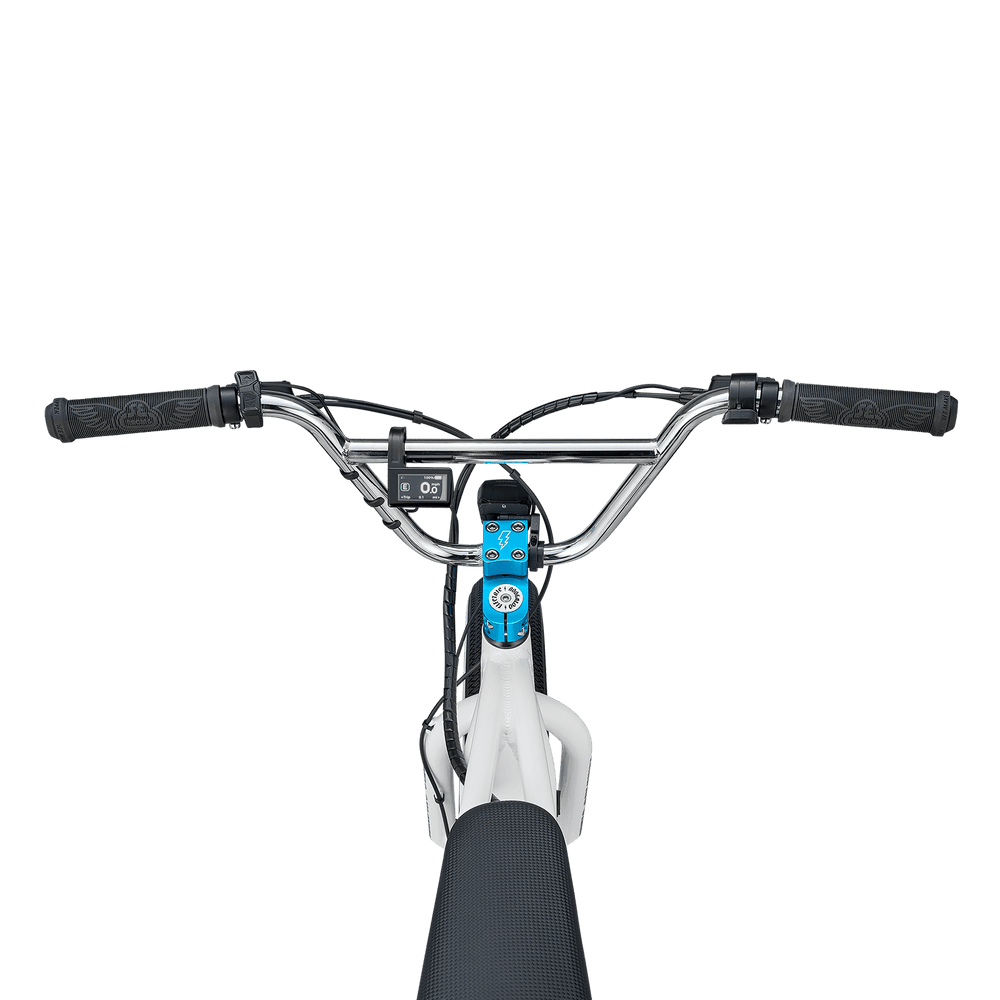

| Display | Bafang DP C245, TFT LCD, 6 Modes, Walk Assist, USB C Charging, Bluetooth 5.0 |

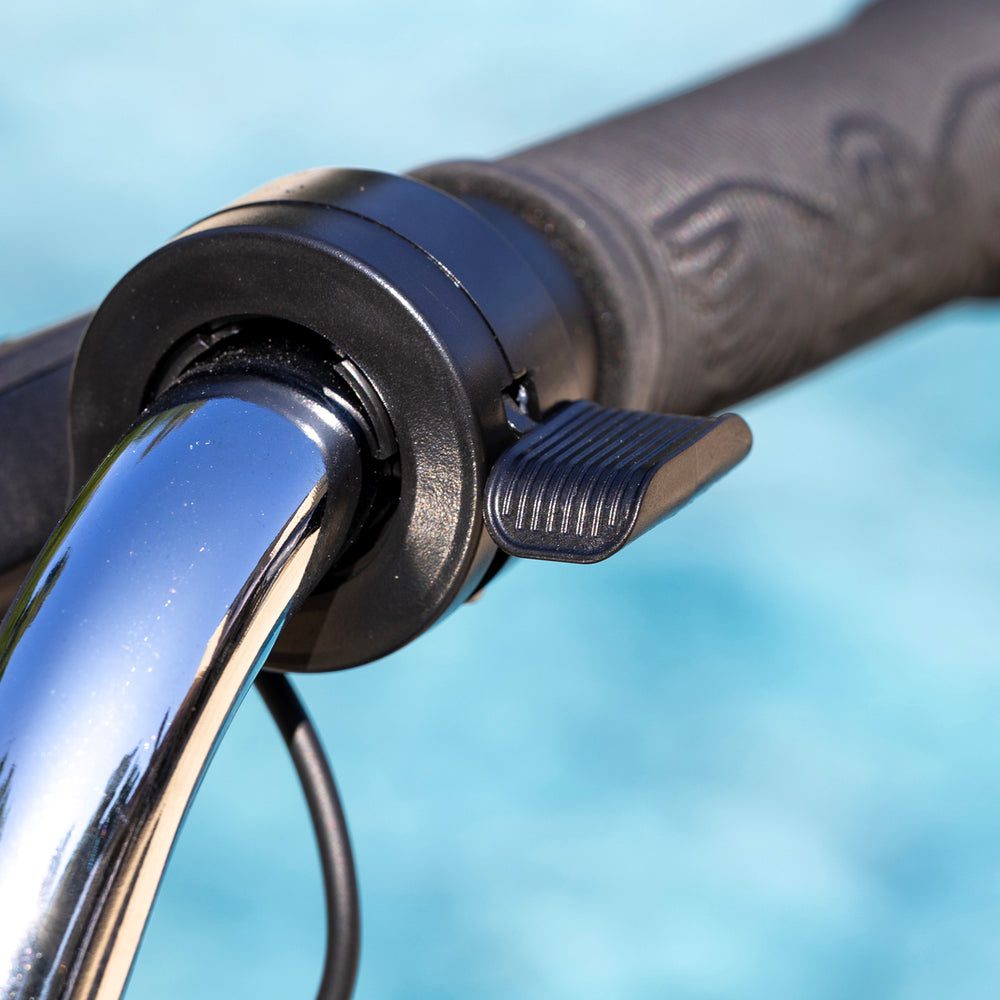

| Throttle | Bafang Thumb Throttle |
| Battery Charger | Bafang, 54.6V, 2.0A, DC Output Port |
| Headlight | Lezyne StZVO E300, LED, 300 Lumens, 100 Lux, 6-12V, Water Resistant |

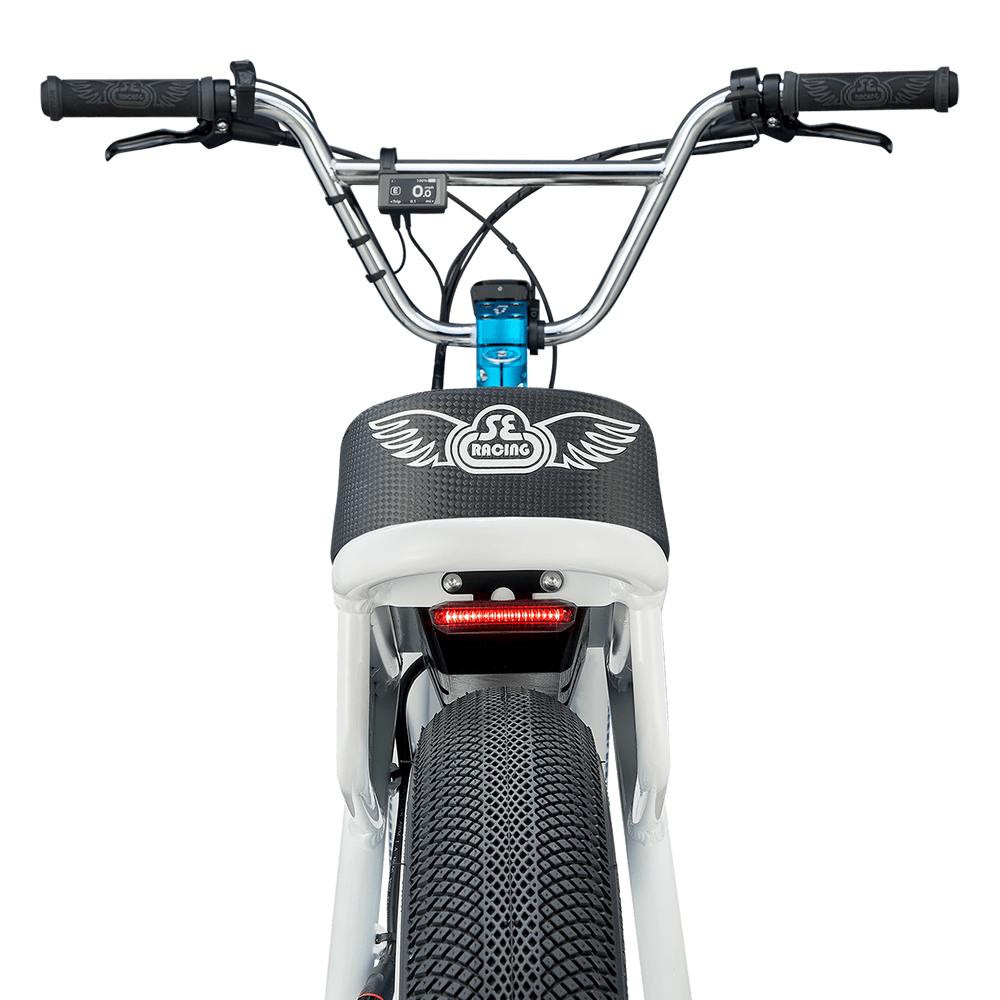

| Rear Light | Trelock COB Line LS 65x, Start Up Sequence, 600 Meter Visibility, Brake Light Function |
| Range | Up to 45 miles |
| Charge Time | 4 hours |
| Weight Limit | 300 lbs |
| Certifications / Use Condition | Class 2 E-Bike, Use Condition 3, Full Electrical System UL2849 Compliant |
| Weight | 68 lbs / 30.84 kgs |
| Wheel Size | 24" |
Geometry
| A | Top Tube, Actual | 23.7" |
| A1 | Top Tube, Effective | 24.7" |
| B | Seat Tube, Center To Top | 17.9" |
| C | Seat Tube Angle | 71° |
| D | Head Tube Angle | 70° |
| E | Chainstay Length | 17.1" |
| F | Wheelbase | 43.2" |
| G | Bottom Bracket Height | 11" |
| H | Standover | 31.7" |
| Stem | 55mm | |
| Handlebar Width | 28.5" | |
| Crank | 165mm | |
| Wheel Size | 24" |
Specifications subject to change without notice.
Available to order: 29ers Bike Shop is an authorized SE Bikes dealer. This bike is ordered from the distributor for you – contact us for current lead time.
