Description
Conquer any terrain with the Velotric Summit 1 — a powerful electric mountain bike built for adventure, comfort, and performance.
General Info
| Model Name |
Velotric Summit 1 |
| Colors |

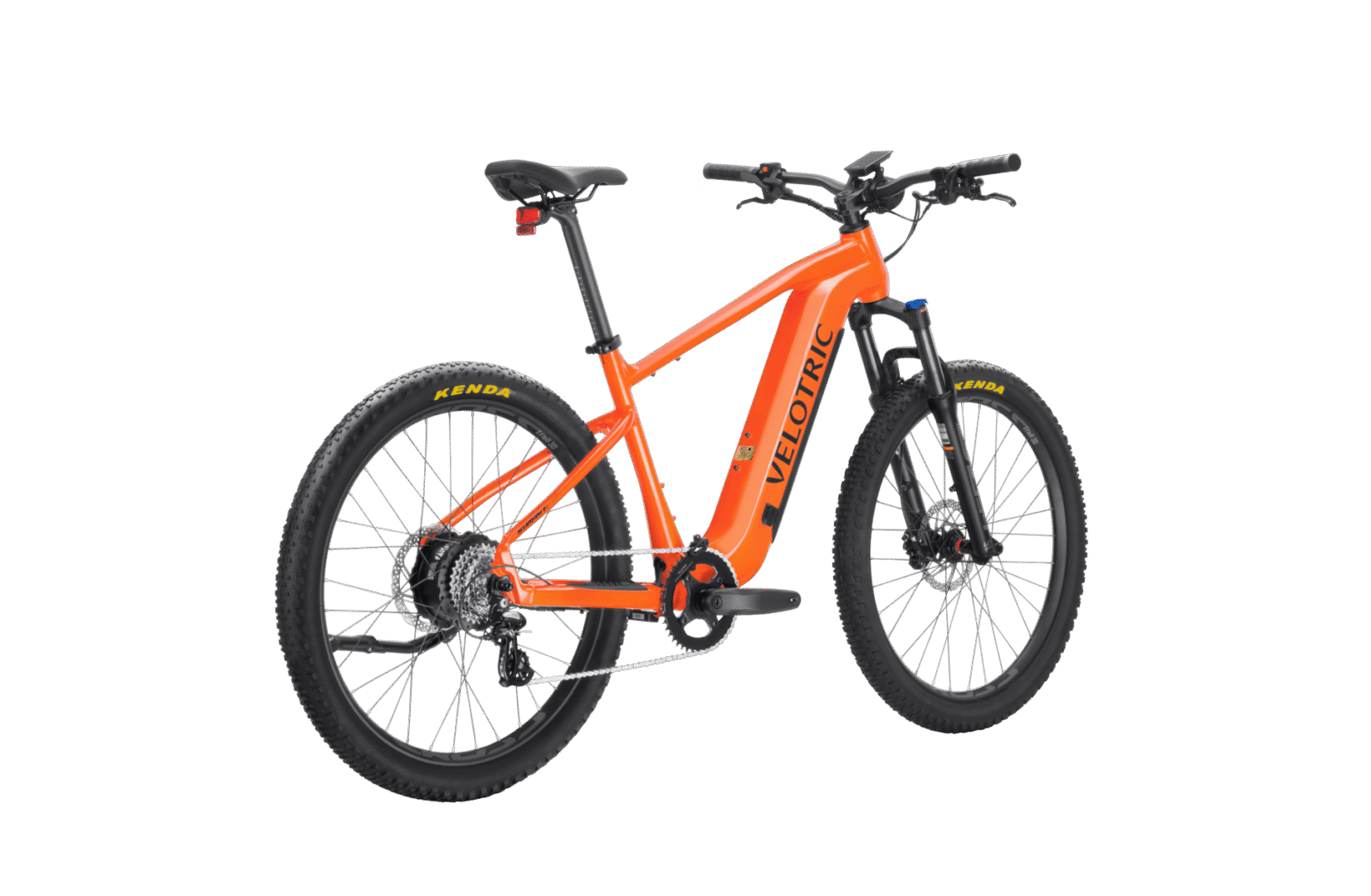

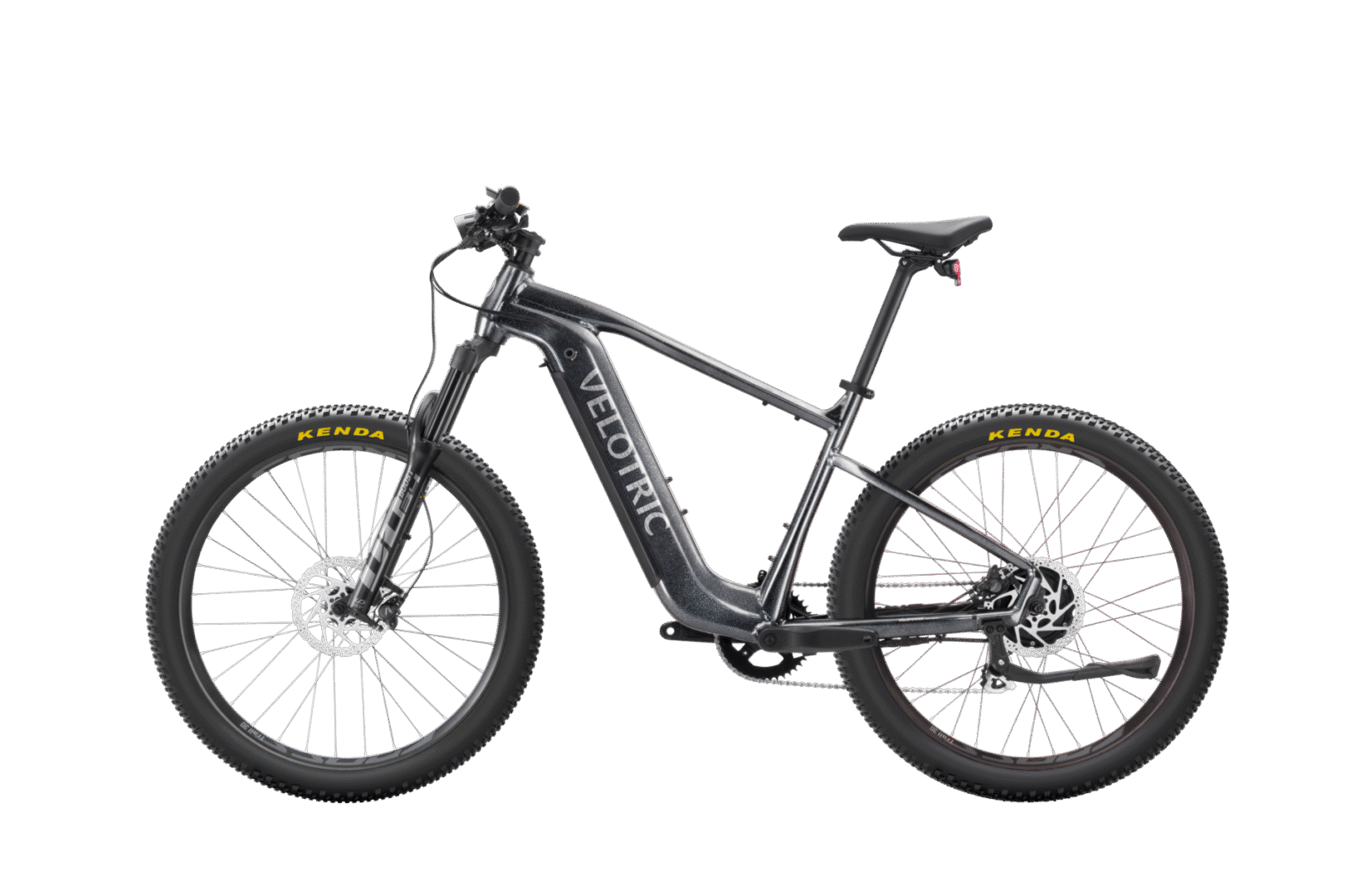

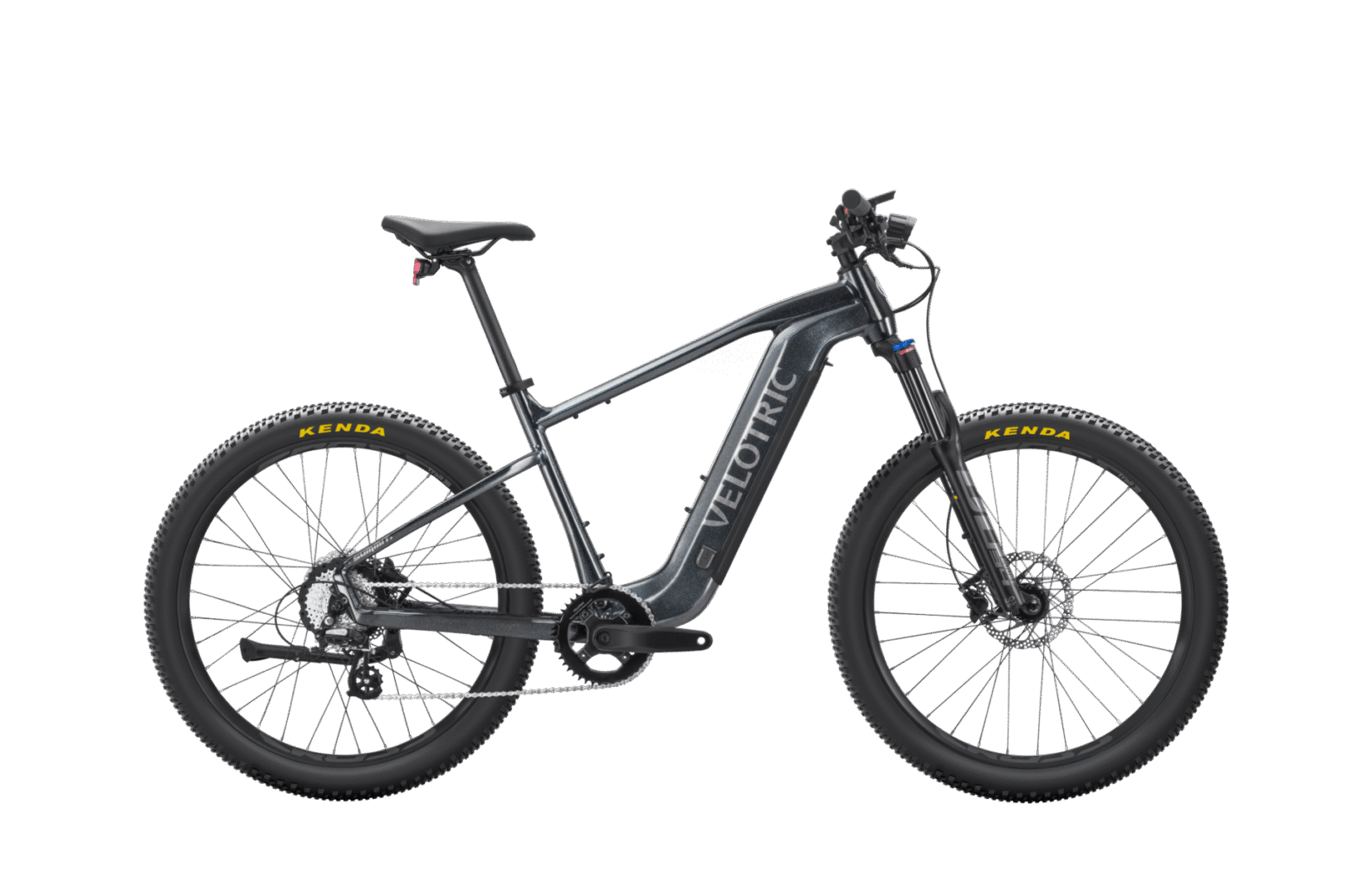

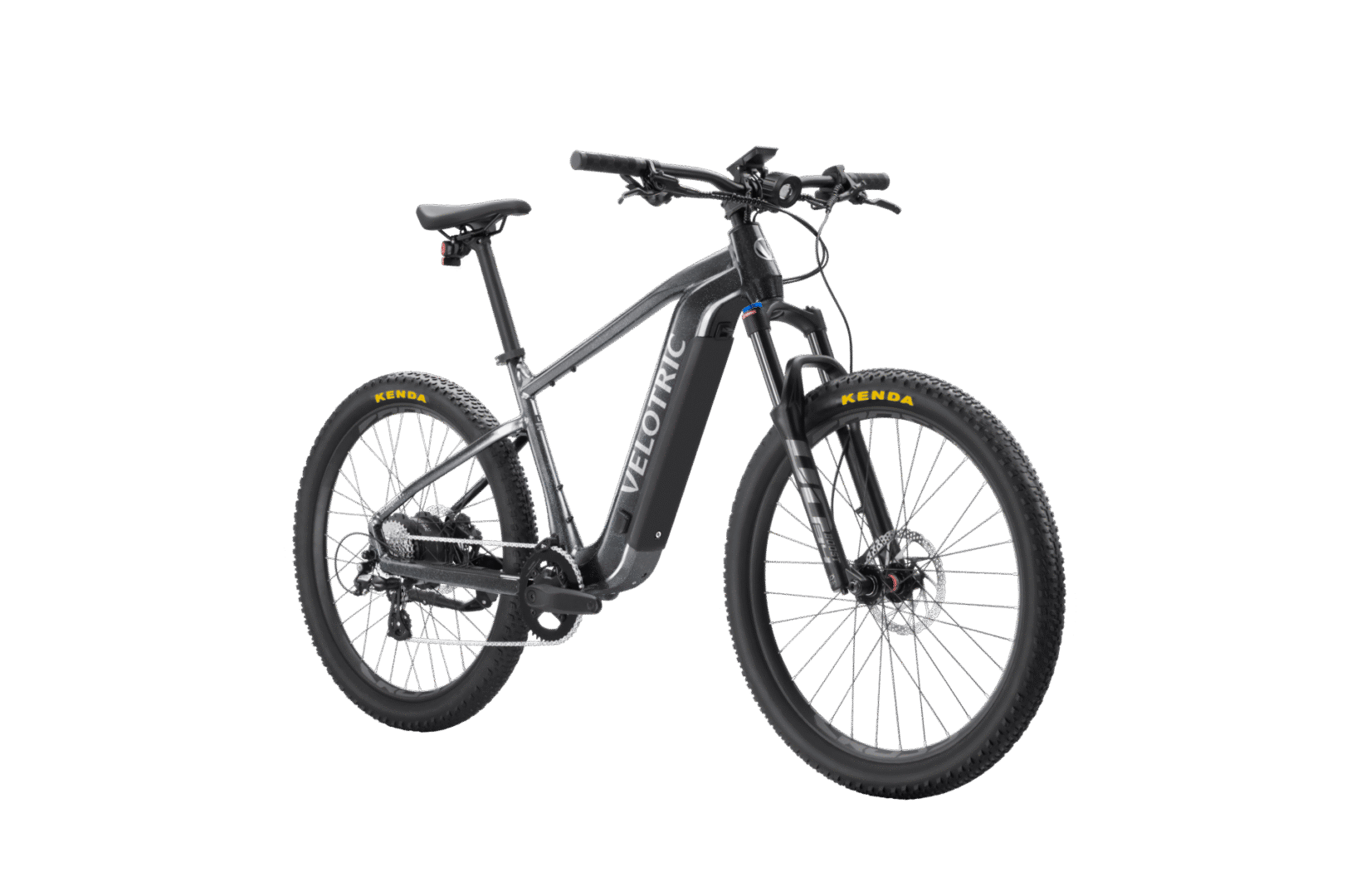

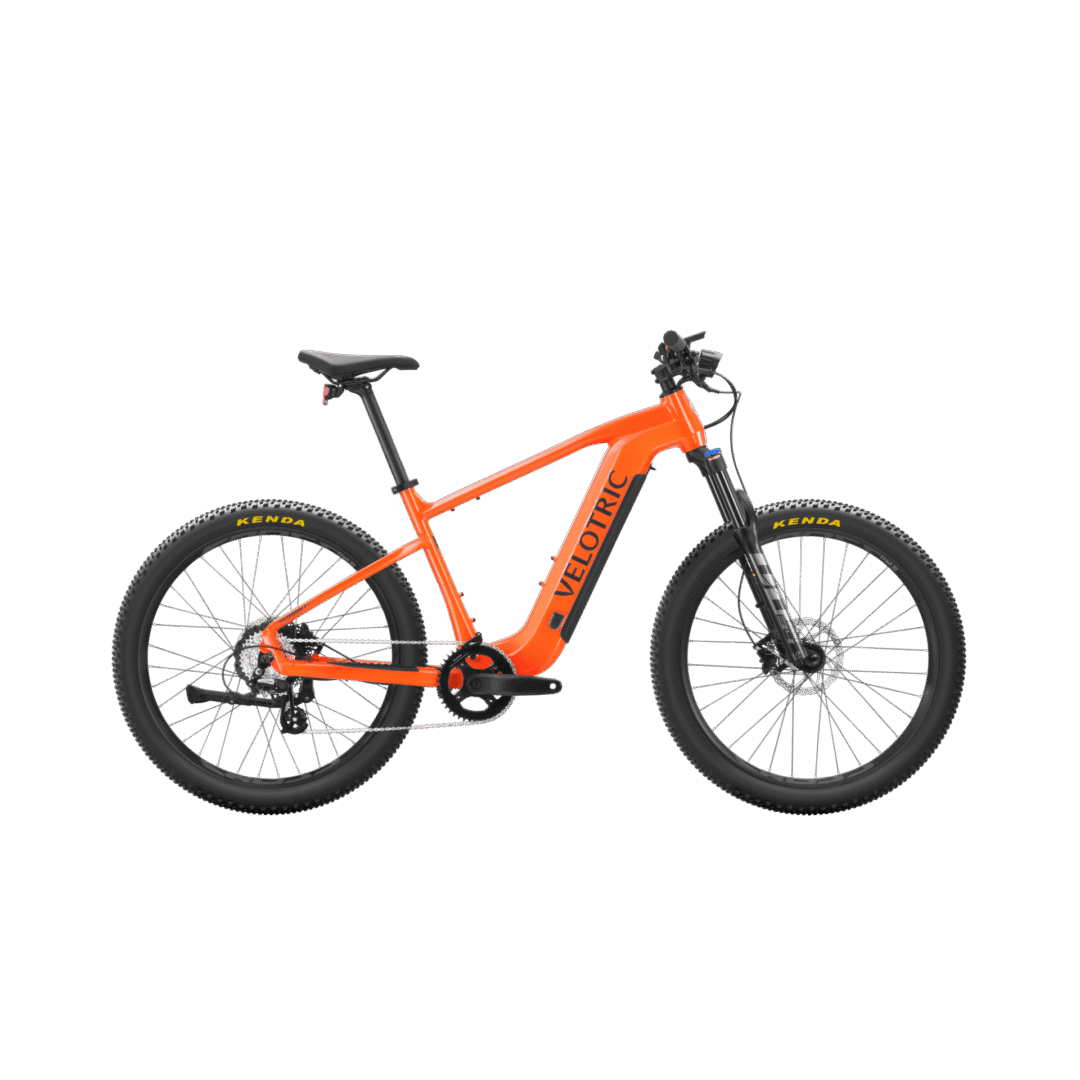

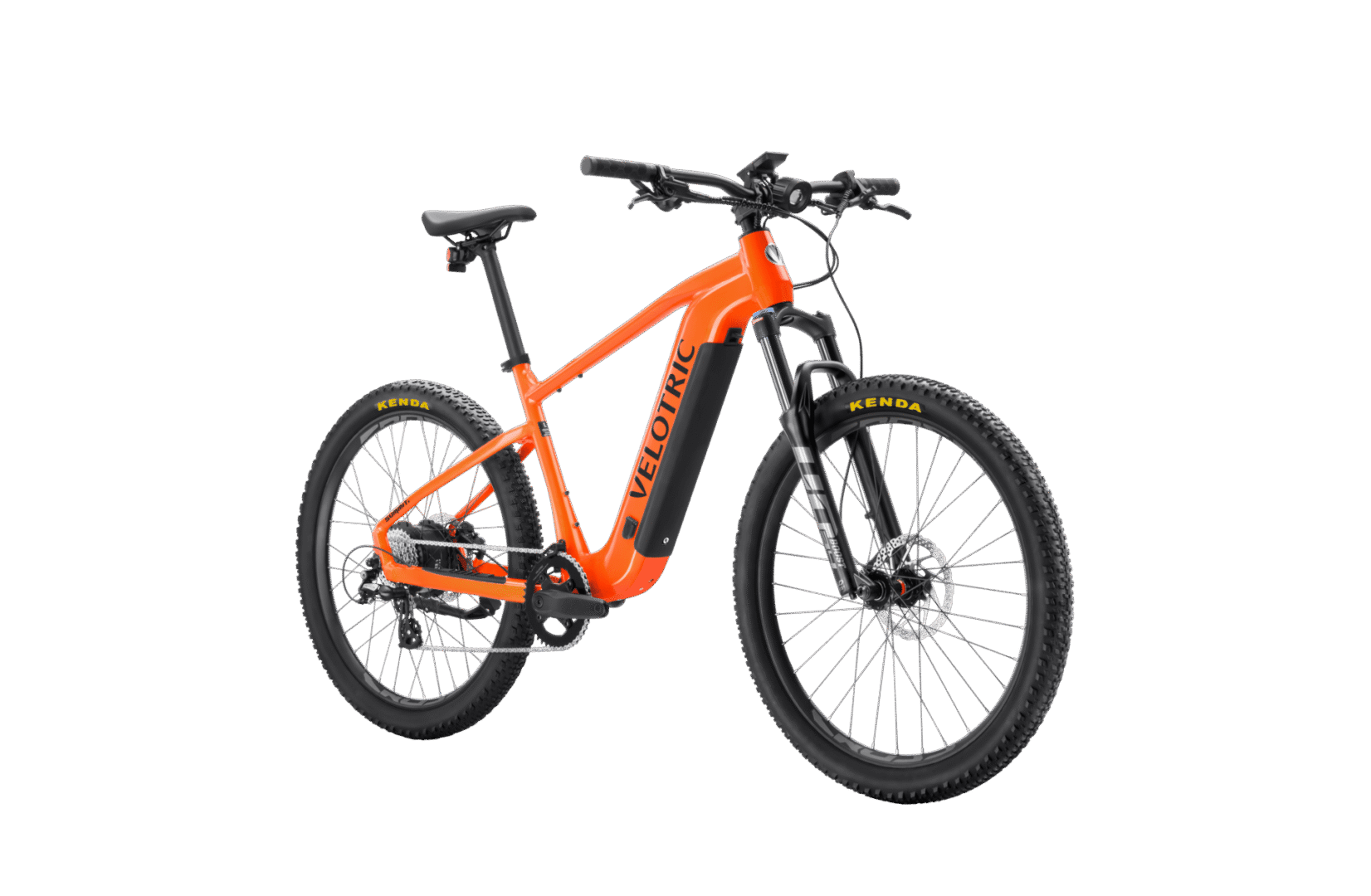

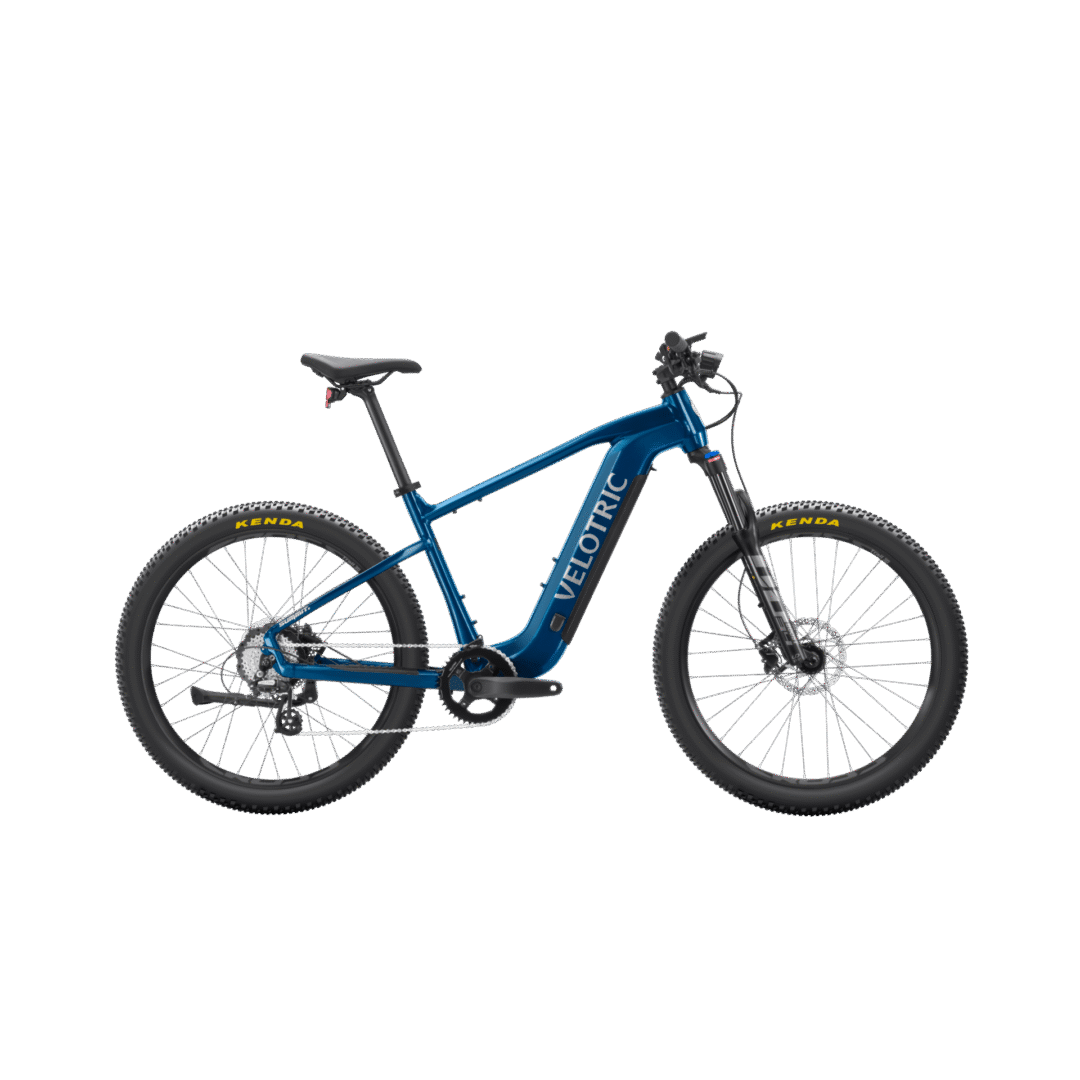

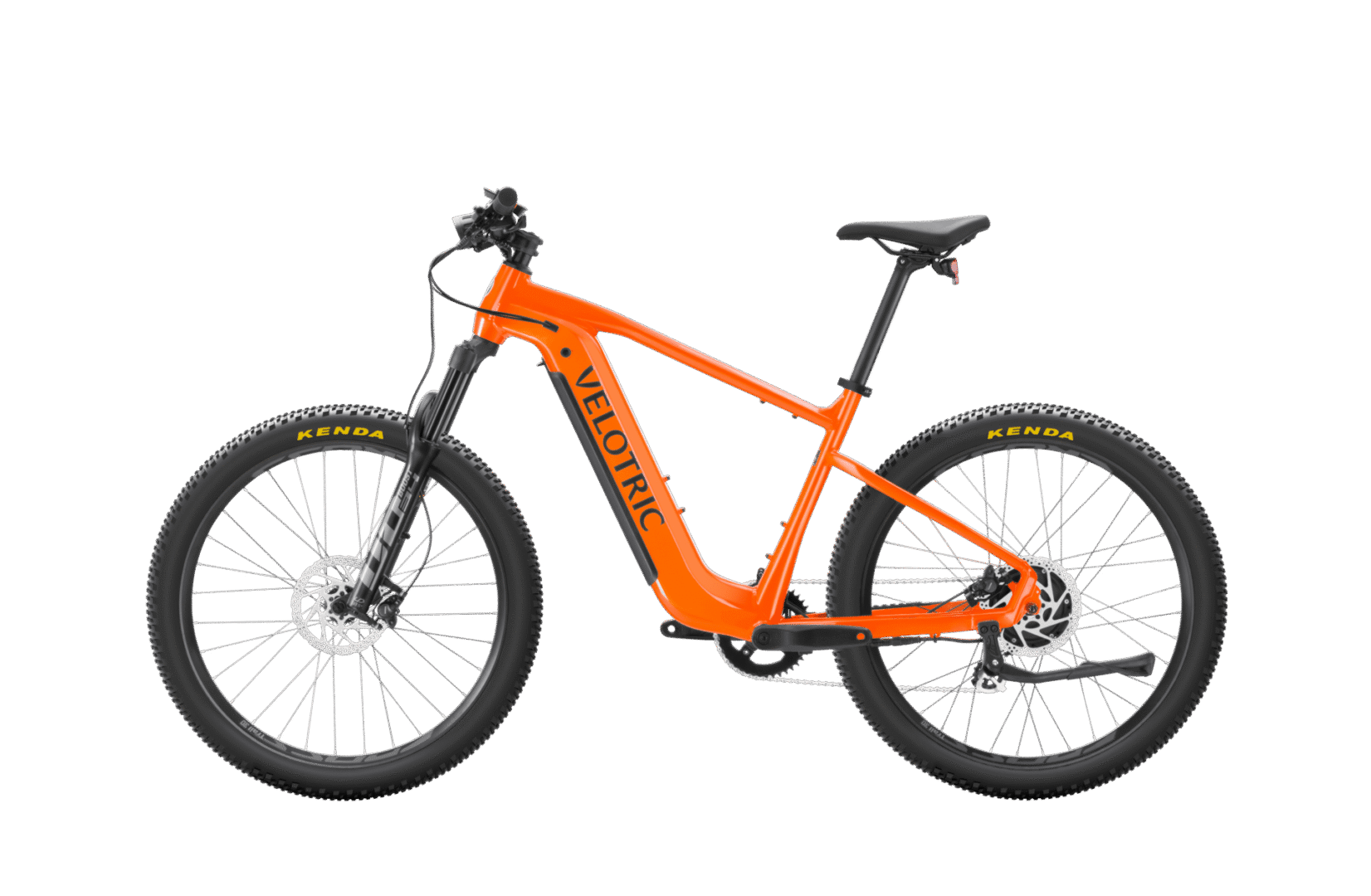

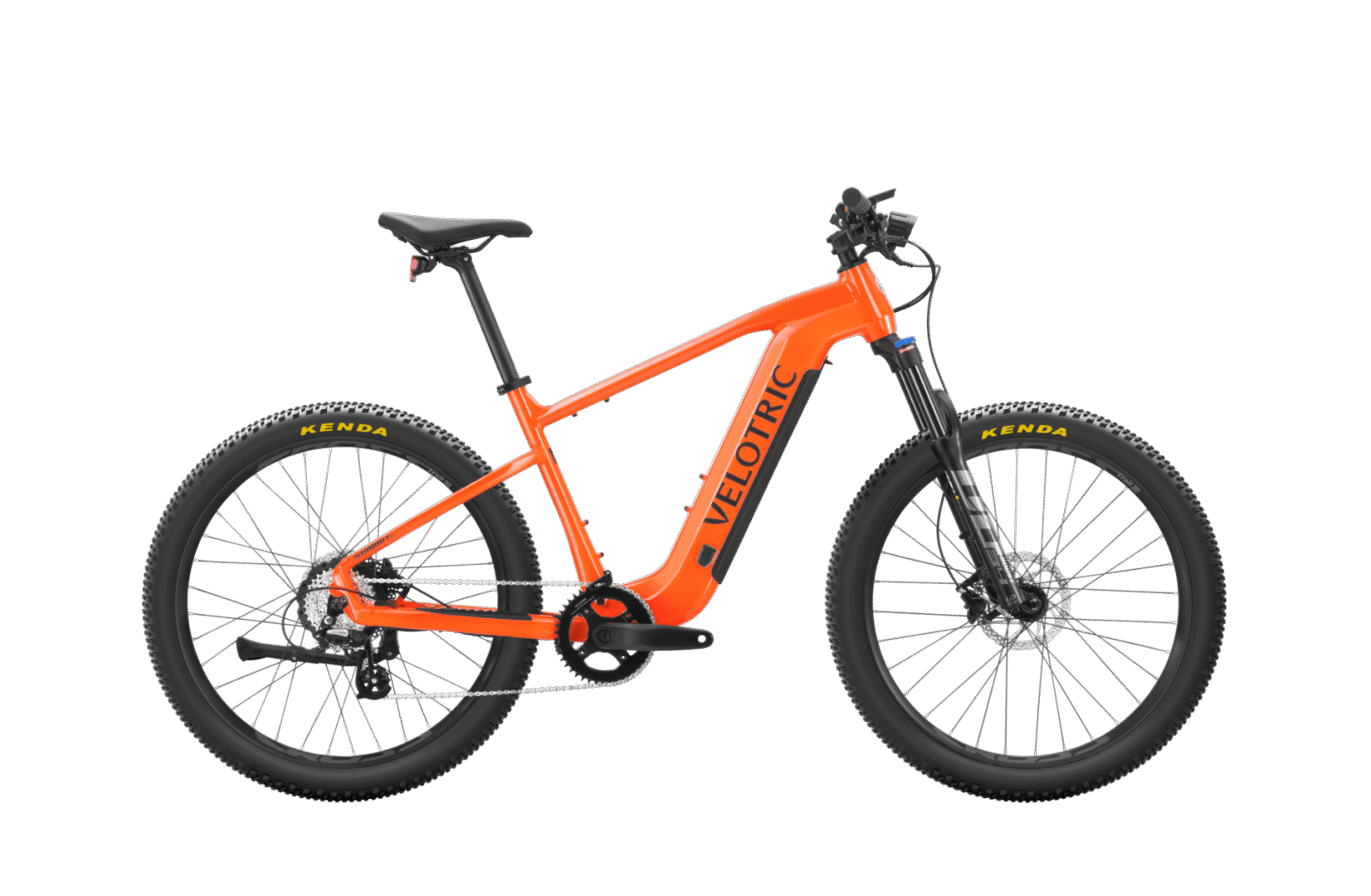

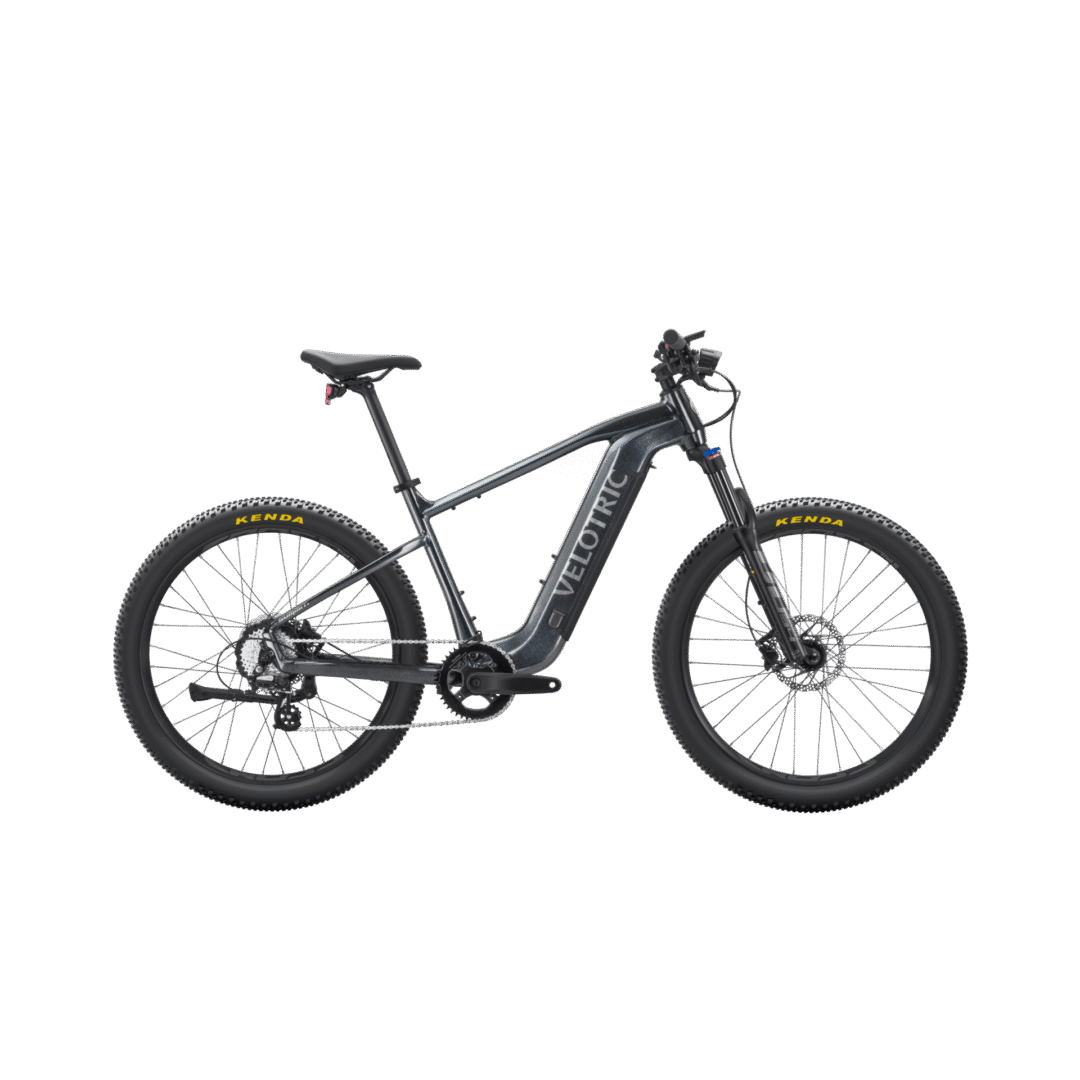

Royal Blue, Sunrise Orange, Space Black |
| Frame |
Triple-Butted Aluminum Alloy |
Size Guide
| Bike Size |
Regular / Large |
| User Height Range |
Regular: 5’1” ~ 5’10”
Large: 5’8” ~ 6’6” |
Electronics
| Motor Hub |
48V, 750W (1300W Peak), 90Nm |
| Battery |
48V, 705.6Wh, IPX7, UL 2271 Certified |
| Cell |
Samsung/LG 21700 cell, UL 2580 Certified |
| Charger |
48V, 3A Fast Charger |
| Display |
2.8″ Full color, High brightness, Bluetooth, adjustable angle |
| SensorSwap™️ |
Torque Sensor |
| USB Port |
USB Type-A phone charge |
| Throttle Assist |
Trigger-control, removable |
| Pedal Assist Modes |
3 Riding Modes x 5 PAS Levels |
| Rear Light |
Braking Indicator, steady/flash |
| Front Light |
Light sensing 130Lux high-output integrated LED, adjustable angle |
| Water Resistant |
IPX6 |
| App & Apple Find My™ |
Apple Find My™ |
Frameset
| Frame |
Triple-Butted Aluminum Alloy |
| Fork |
Hydraulic suspension 120mm travel with Lock-out, 15x110mm thru-axle |
Speed & Range
| Max Speed (Default) |
20 MPH |
| Max Speed Adjustable Range |
12~28 MPH |
| Class |
1/2/3 |
| Throttle Range |
60 Miles |
| Pedal Assist Range |
70 Miles |
Brake
| Brake |
SHIMANO Hydraulic Disc Brake |
| Rotors |
180mm front and rear |
| Brake Levers |
Aluminum Alloy, with power cutoff |
Weight & Load
| Bike Weight |
62 lbs |
| Max Bike Load |
440 lbs |
Cockpit
| Handlebar |
Aluminum Alloy, Φ31.8mm, 760mm (R) / 780mm (L) |
| Grips |
Velotric sports grips, lockable |
| Stem |
Aluminum Alloy, Φ31.8mm, 35mm (R) / 50mm (L) |
| Saddle |
VELOTRIC ergonomic seat |
| Seatpost |
Aluminum Alloy, φ30.9mm, 350mm |
| Clamp |
Aluminum Alloy, quick release |
Wheel
| Rims |
Double-wall Aluminum Alloy |
| Front Hub |
NOVATEC Aluminum Alloy, 15x110mm thru-axle |
| Tire |
Kenda 27.5×2.6″ MTB puncture resistant tires |
Supports
| Fenders |
Optional |
| Rear Rack |
Optional |
| Pedals |
Aluminum Alloy |
| Kickstand |
Aluminum Alloy, included, rear mount |
Certification
| UL Certification |
UL 2849 |
| ISO Standard |
ISO 4210 |
Drivetrain
| Chainrings |
BCD 104, 44T, narrow wide chainring |
| Crankset |
Aluminum Alloy, 170mm |
| Freewheel |
8-speed, 11–40T |
| Chain |
KMC 8-speed |
| Rear Derailleur |
SHIMANO 8-speed |
| Shift Lever |
SHIMANO 8-speed |
Specifications from velotricbike.com; subject to change.
Available to order: this item is ordered in for you from the brand or distributor. Contact us for current lead time.
